Description

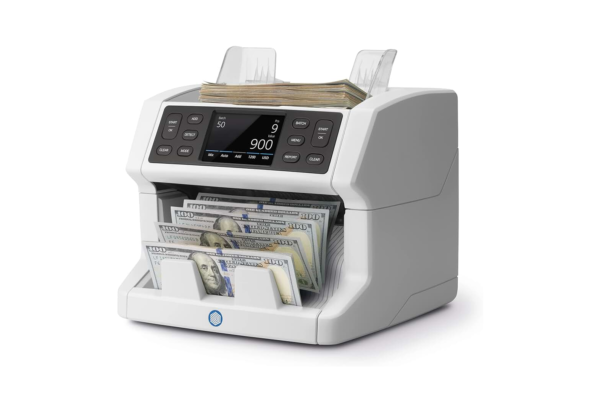

Two pocket banknote counter (Dual CIS)
Model: DSC-100 , Currency Sorter – 2pockets
* With UV, MG, IR, and Dual CIS ( Image) sensors for detection.
* Non-Stop counting with reject pocket.
* Face / Orientation /Version / Denomination / Value Counting Mode.
* Auto currency identification.
* Counting speeds of 800 /1000/1200 Notes per Minute.
| Model | DSC-100 , Currency Sorter – 2pockets |
| Hopper Cappacity | 500 Notes Approx |
| Stacker Capacity | 200 Notes |
| Reject Capacity | 100 Notes |
| Counting Speed | 800,1000, 1200 Notes /Min 800,1000 notes/Min for MDC & SDC Mode |
| Feed System | Roller Friction System |
| Detection | UV , MG , IR , DD |
| CIS | Dual CIS |
| Display | 4.5 inch Touch Screen |
| Operation Modes | Face / Orientatio / Version / Denomination Sorting |
| Serial Numbers | yes Serial Numbers Recognition |
| Languages | Multi Languages Interface |
| Notes Sizes | Minimum 110mm X 50mm Maximum 190mm X 90mm |
| Notes Thickness | 0.075 – 0.15 mm |
| Interface | USB , RS-232 , RJ11 |
| Printer | yes optional |
| External Display | yes optional |
| Power Consumption | 80W Approx. |
| Power Source | 100V/60Hz or 240V/50Hz |
| Dimensions | 270X265X325 mm |
| Weight | 9.4Kgs Net |
